- SPU: AL-6FBF-88jsgwar[3]
- Model: 4 strings (red board)
- Accessory name: 4 strings of 3.2V lithium iron phosphate batteries
- Product Certification:Standard

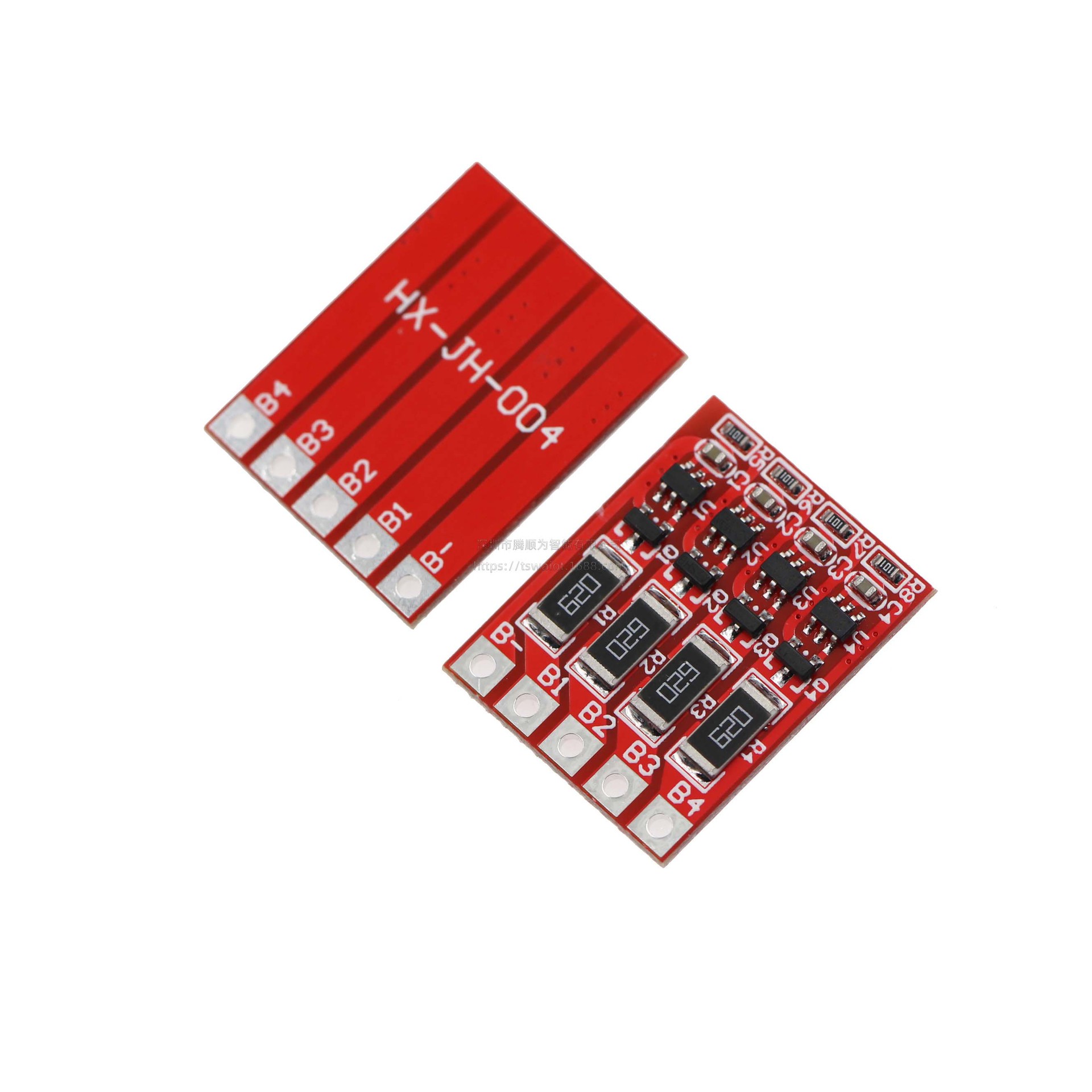

4-string 3.2V lithium iron phosphate battery balancing board 3.6V lithium iron phosphate balancing function board charging balancing board
The products sold in our store all contain some electronic technology. If you do not understand or are not sure whether your product is suitable for use, please consult customer service first. Please understand the parameters we describe on the page in detail before purchasing to avoid unnecessary for the trouble.thank you!( Beginners should be careful when shooting)
Features:
3.6V balanced voltage, balanced current is 58mA
use:
Precautions:
This balancing board is suitable for lithium iron phosphate battery packs without balanced charging. Charging balance ensures that each battery pack in the battery pack is fully charged at the same time.
This equalizer chip has no charge and discharge protection function and cannot replace the protection board. When the battery is charging, the battery that is fully charged first is discharged through the resistor to balance the shunt.
Product Size:26*20.5* 2.4mm
Solder joint instructions:
B－ Connect to the negative pole of the battery pack
B1 connects the contacts between battery 1 and battery 2
B2 connects the contacts in battery 2 and battery 3
B3 connects the contacts in battery 3 and battery 4
B4 is connected to the positive terminal of the battery pack
