60pcs47 per box*39*41

single: Color box set of 13*8.2* 9.4cm

​

powered by: 3.7V( lithium battery)

button: three( MODE key+SET key+LED key)

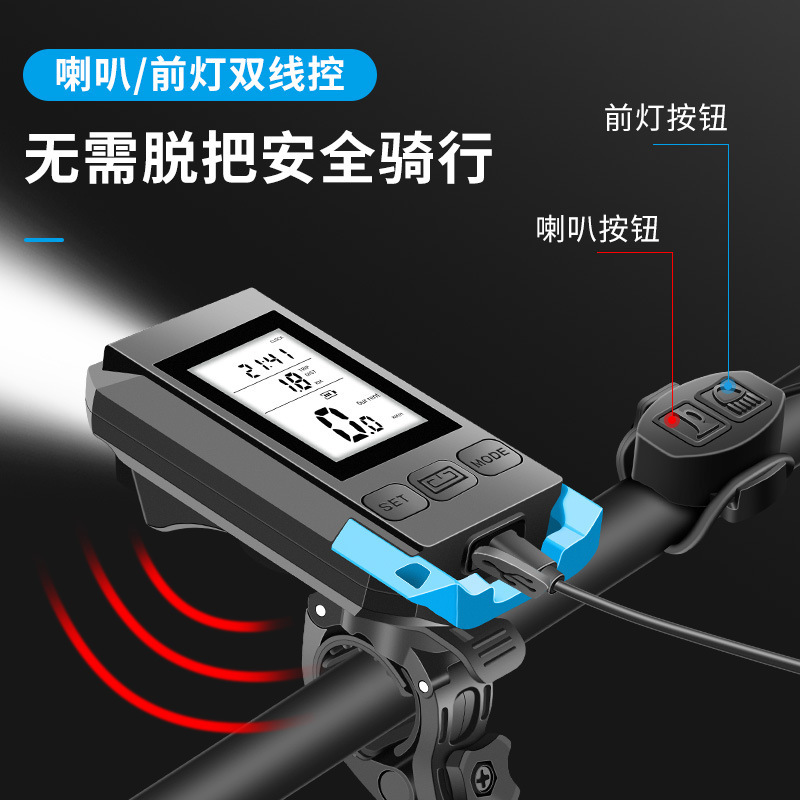

External buttons: LED key + buzzer key

Function:

- ​ Five light mode switching

- ​ five sounds

- ​ current speed

- ​ Total mileage traveled

- ​ Single driving mileage .

- ​ Maximum driving speed .

- ​ average speed.

- ​ Driving time.

- ​ Total driving time

- ​ Real Time Clock

- ​ Backlight function

- ​ Calories

- ​ temperature

- ​ battery power

- ​ Power saving function

- ​ kilometers setting

- ​ Tire circumference setting

- ​ Total mileage setting

- ​ Total travel time settings

- ​ wireless reception

- ​ Weight settings

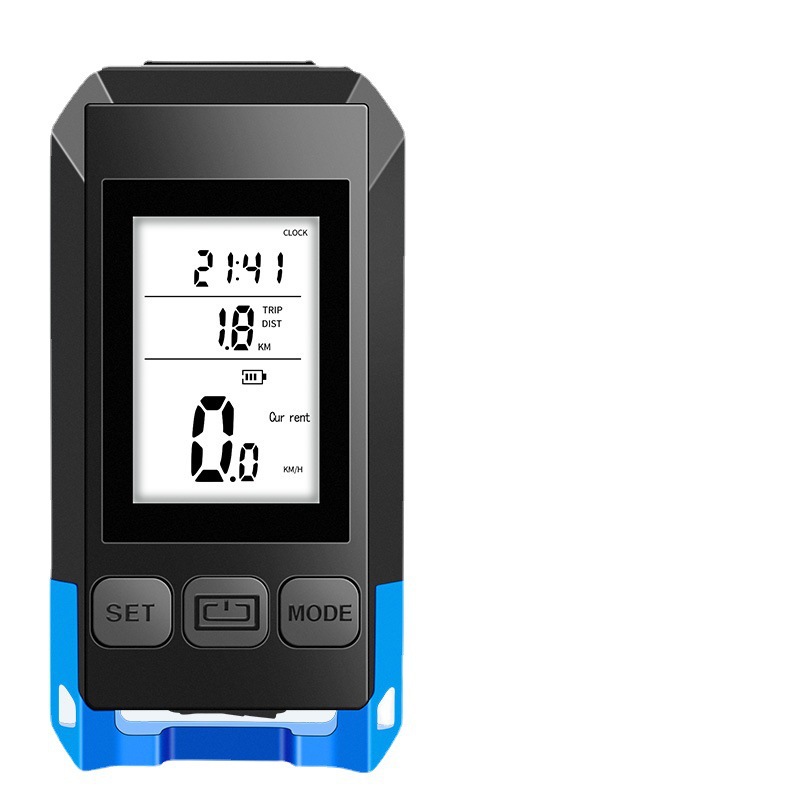

​ Instructions: After powering on, full display enters the interface.

The first line shows the content: Real-time time, calories, riding distance, total riding distance, riding time, total riding distance, etc.

Press Mode to switch the function of the first row( left button)

Press and hold the mode key in the current function interface to enter the setting or clearing state, for example: In TOTAL _DIST mode, long press the mode key to enter the setting state. ​

In the setting state, continue to press the mode key to perform bit selection, and press the set key to add or subtract until the bit selection is completed.

Only the total riding time, total riding distance and real-time time can be set. Others are cleared.!

The second line displays the riding distance

Press the mode key and the set key at the same time to enter the kilometer and mile unit settings, wheel circumference setting and weight setting. The default wheel circumference is 2060mm. The mode key is also used for position selection, and the set key is used for addition and subtraction. After setting the wheel circumference, 070 will be displayed, which means Weight default is 70Kg

The third line shows the content: Current speed, maximum speed, average speed, temperature, kilometers or miles

Press the set key to switch functions. Short press to switch functions. Press and hold to clear.

Backlight time default; greater than 18: 00 less than 06: 00 light duration 5s , press and hold the LED light on button for about 3 seconds to turn on the backlight always-on function, and after turning it on, press and hold it for 3 seconds to turn off the backlight always-on function.

temperature range:- 10°~ 70°

Total riding time:0~ 999.9H hours

Riding time:0~ 99.59.59H hours

Total distance traveled:0~ 99999.9KM

Riding distance:0~ 9999.9km

Calories: 0~ 999.9kcal

speed range:0~ 99.9km/ h

Electricity value:

Four grid power >4V

Three grid electricity 3.8~ 4V

Second grid 3.6 V~ 3.8 V

One grid of electricity 3.3 V~ 3.6V

​

​

​
