- SPU: AL-AWY2-7xno30lq[A2]
- Mechanical life:8
- Product certification:CCC
- 3C rated voltage range: 36V and below
- Specifications: SG-3A vertical single hole 0.5-0.8MPA
SG- 3A single hole switch
pressure range:0.5- 0.8MPA(90- 125PSI)
Single product weight: 310g single product packaging size:131*54* 86 mm
Whole: 50PCS Whole piece weight: 15.85kg overall size:45*30* 28cm
model: SG- 3A vertical single-way switch
net weight: About 280 grams
Dimensions:82*52* 127MM( long* Width* high)
Rated voltage:220/ 380V
exhaust pipe: 6MM
Contact method: Normally closed
Connector size: Imperial 1/ 4 2 minutes internal thread about 12MM
Pressure relief port outer diameter: 9.5MM
Maximum current: 16A
work pressure:5- 8KG(90- 125PSI)
life: 80000 times

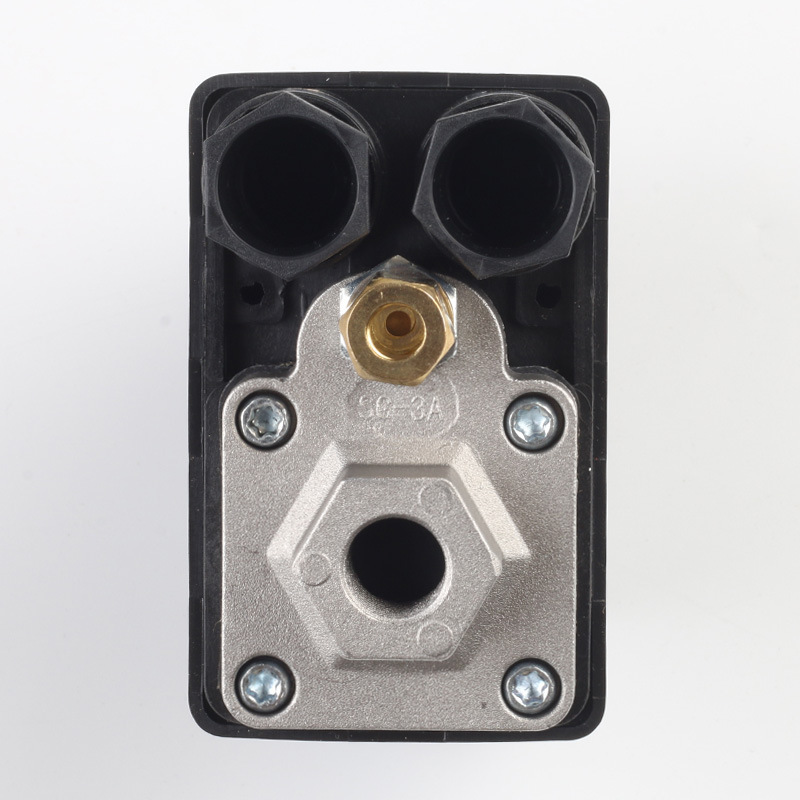

Product actual pictures
