$2.50 | Direct Sales from Manufacturer for DD0405MA, Exports Hot Selling, Cross-Border Supply, Source of Goods, Technical Support, Power Module

Direct Sales from Manufacturer for DD0405MA, Exports Hot Selling, Cross-Border Supply, Source of Goods, Technical Support, Power Module

$2.50

sales volume: 7

classification: Hardware tools , electric control , Switching Mode Power Supply

colour

3V pin-ended

3V3 with Pins

5V pin header

3V pinless

3V3 pinless

5V needle-free

size

Free Size

number

Buy now

SPU: AL-Q0QG-7g6hi371[7]
Model: 3V with needle
Model: 3V3 with needle
Model: 5V with needle
Model: 3V without needle
Model: 3V3 without needle
Model: 5V without needle
Type: DC/DC power supply
Input voltage: DC 4.5-8V
Output power: no
Power supply type: Switching power supply

Product Name:

1 PCS 0.7-5V to 3V 3.3V 5V DC DC Boost Converter voltage Step-up Module

Packing list:

1 PCS DD0405MA orDD0405MB mini High Efficiency synchronous PFM step-up DC-DC converter

Description:

3V :

Input voltage DC 0.7 ~ 3V,output DC 3V±2%

DC DC Boost Converter Module working frequency 350KHZ.

High efficiency : 95% (usually is 77%-93%)

Low Quiescent Current : 13uA

Low ripple and Low noise

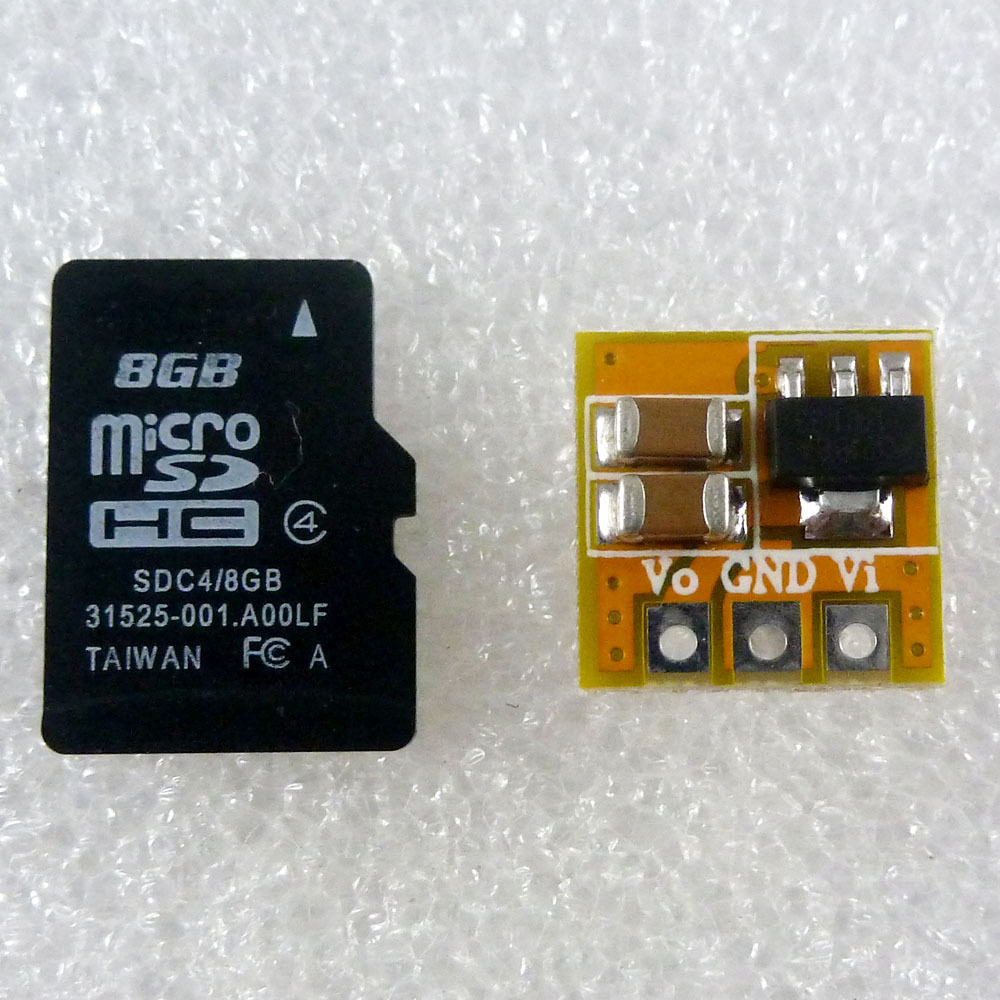

Ultra-small size(Not including pin): 10.6x10.5x5.6mm

Ultra-light weight : with Pin is 0.91g,no Pin is 0.66g

3.3V :

Input voltage DC 0.8 ~ 3.3V,output DC 3.3V±2%

DC DC Boost Converter Module working frequency 350KHZ.

High efficiency : 95% (usually is 75%-93%)

Low Quiescent Current : 13uA

Low ripple and Low noise

Ultra-small size (Not including pin): 10.6x10.5x5.6mm

Ultra-light weight : with Pin is 0.91g,no Pin is 0.66g

5V :

Input voltage DC 1 ~ 5V,output DC 5V±2%

DC DC Boost Converter Module working frequency 350KHZ.

High efficiency : 95% (usually is 76%-93%)

Low Quiescent Current : 13uA

Ultra-small size (Not including pin): 10.6x10.5x5.6mm

Ultra-light weight : with Pin is 0.91g,no Pin is 0.66g

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage

A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

Applications:

AA AAA Dry cell powered equipment

Breadboard Power Supply

Small power motors

Camera, Video camera

Electric toys

Model aircraft

LED Lighting

raspberry pi Arduino UNO MEGA2560

electronic diy kit

STM32 FPGA/CPLD PIC AVR Board

electronic diy kit

Wifi Module,ESP8266

Bluetooth Module,HC-05,HC-06,SPP-C
