Product Name: DC 12V Multi-function Magnetic Latching(keep) Impulse Relay Delay Time Switch Module for UPS Battery Motor LED IP Camera

Package inlcuded:
1 PCS 1channel DC 12V Latching(keep) Multifunction Impulse Relay Module

Description:

Working voltage: DC 12V(10-15V)
Working current : 7-8MA(Digital Tube is OFF)
Working current : 28-30MA(Digital Tube is ON)
Relay switching current: 45MA (only lasts 0.3 seconds)
Load current : AC 250V/10A, DC 30V/10A
0.1 seconds -270 hours between adjustable
18 functions can be selected(Function compatible with CE030 FRM01 Relay Module)

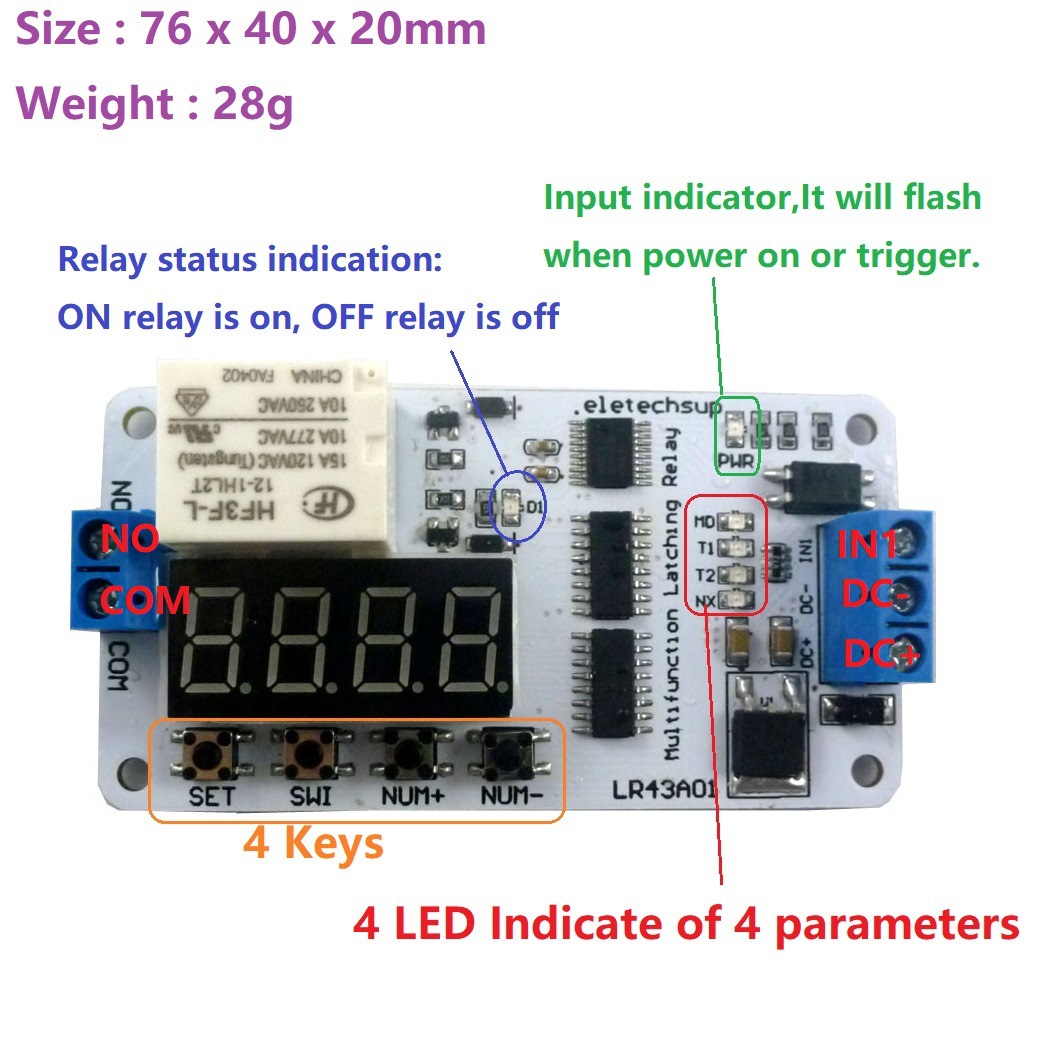

D1 LED : Relay status indication: ON relay is on, OFF relay is off
PWR LED: Input indicator,It will flash when power on or trigger.
Size : 76 x 40 x 20mm
Weight : 28g

Use must read:

1 For more instructions, please contact me, or search for ''CE030/FRM01/LR43A01'' on GOOGLE. Their functional parameters are the same.

2 Energy saving is relative to ordinary relay modules.

3 In the working state, click the SET button to close the digital display, and click again to open the digital tube display.

4 Press and hold the NUM+ button for 4-5 seconds. After 10 seconds, enter the energy-saving mode. Press and hold the NUM+ button again for 4-5 seconds to exit the energy-saving mode (this function can only be set when the digital tube is lit).

Typical applications:

Automotive electronics
Industrial automation and control
Industrial equipment
Motor LED PLC
IP Camera PTZ CCTV
UPS Uninterruptible power supply
Smart Home
Emergency lighting
MCU development board
Toy car
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC Motor
Fluorescent lamp
Automotive electronics

Connections:

Module control side: there are 3-wire interface, all interfaces are terminal
1, DC +:power positive
2, DC-: power in negative
3, CH1: Input Detection Interface
Relay outputs: a 3-wire interface, all interfaces are terminal

1, NO: normal open (before relay closes, this pin is not connected. after relay closes, the pin short-connects with COM)

2, COM: Relay Common Interface

Module Functions:
Tips: Function 1-8 on power-up self-start function 9-18 require low pulse signa l (low duration is shorter than 20ms, hereinafter the same) trigger the start.
