$4.80 | DDTCCRUB廠家批發WISH亞馬遜跨境電商電商一鍵上傳電子模塊

DDTCCRUB廠家批發WISH亞馬遜跨境電商電商一鍵上傳電子模塊

$4.80

sales volume: 8

classification: Hardware tools , electric control , Switching Mode Power Supply

colour

2S1A

2S2A

2S4A

3S1A

3S2A

3S4A

4S1A

4S2A

4S4A

size

均碼

number

Buy now

SPU: AL-Q0QG-82ezdpri[A7]
型號:2S2A
型號:3S1A
型號:3S4A
型號:4S4A
類型:DC/DC電源
輸入電壓:3-6
輸出功率:1-50瓦
電源類型:開關電源

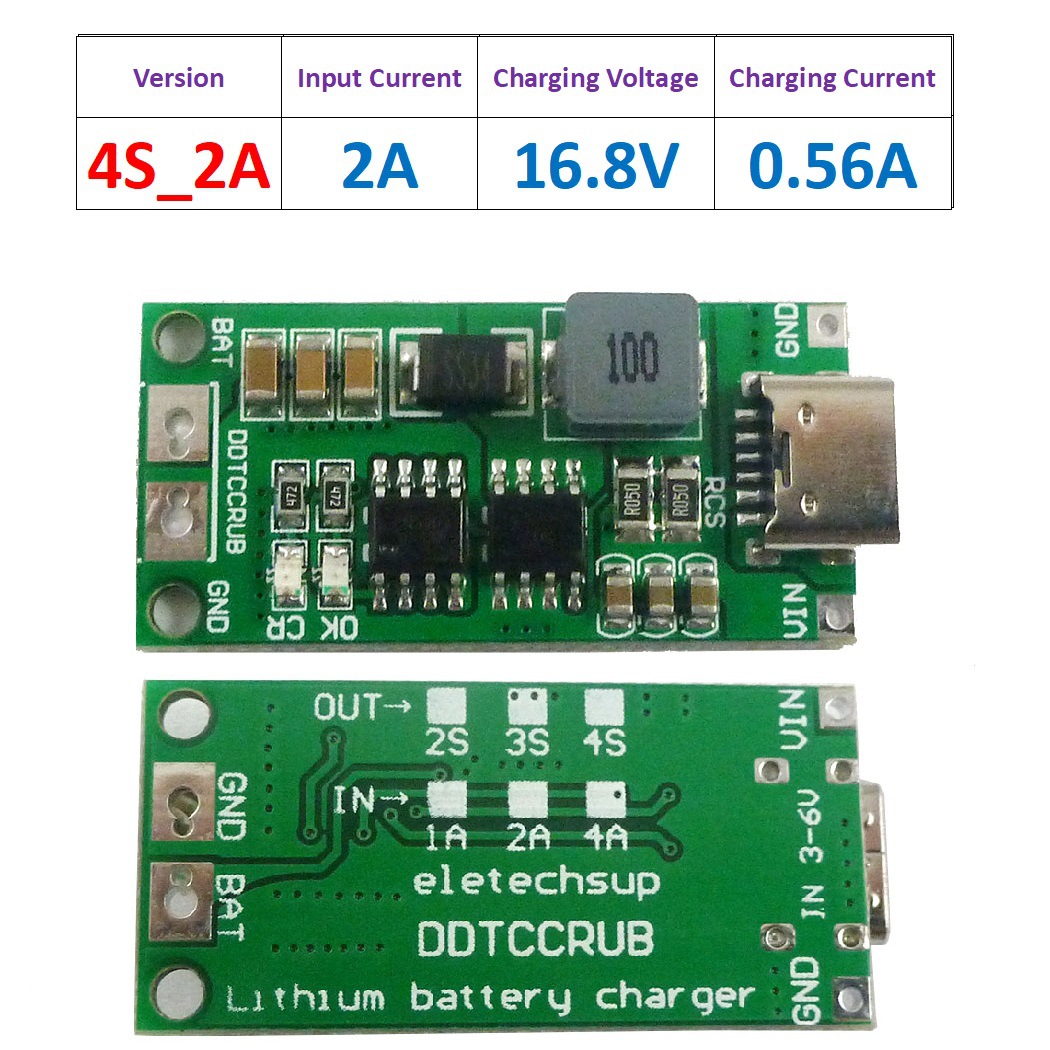

Product Name: 1-4A Multi-Cell Step-up Boost Li-Po Polymer Li-Ion Charger DC 3-6V to 8.4V 12.6V 16.8V for 7.4V 11.1V 14.8V 18650 Lithium Battery

Packing list:

1 PCS 1A/2A/4A 2/3/4-cell 7.4V 11.1V 14.8V Type-C Boost Li-Ion battery charger (Please select the appropriate version according to your battery voltage and power supply current before buying)

Description:

2-Cell(2S) 8.4V Version: Input voltage : DC 3-6V(Recommend DC 3.7V 5V) Input current : 1A(1A Version);2A(2A Version);4A(4A Version) Charging voltage : 8.4V Charging current : 0.55A(1A Version);1.1A(2A Version);2.2A(4A Version) 3-Cell(3S) 12.6V Version: Input voltage : DC 3-6V(Recommend DC 3.7V 5V) Input current : 1A(1A Version);2A(2A Version);4A(4A Version) Charging voltage : 12.6V Charging current : 0.37A(1A Version);0.74A(2A Version);1.48A(4A Version) 4-Cell(4S) 16.8V Version: Input voltage : DC 3-6V(Recommend DC 3.7V 5V) Input current : 1A(1A Version);2A(2A Version);4A(4A Version) Charging voltage : 16.8V Charging current : 0.28A(1A Version);0.56A(2A Version);1.12A(4A Version) Switching Frequency up to 1MHz Quasi-CV mode to Compensate for the Voltage Loss on Battery Internal Resistance and Trace Resistance Automatic Recharge Protection for Battery Voltage Being Low than Input and Short Battery Good adaptability to Input Supply with Limited Driving Capability Battery Overvoltage Protection Led indicator : ''CR'' LED is charge status indicator ''OK'' LED is fully charged OR Constant voltage mode; Operating Ambient Temperature－40℃ to ＋85℃ Size 39mm x 18mm x 6.3mm Weight : 5g Applications:

PDA, MP3 Players, MP4 Players Digital Cameras Bluetooth Applications Game Players Notebook li-on Lithium Battery 18650 Mobile phone Solar charging Audio equipment Portable Devices POS , Electric Fan TYPE-C charging equipment

The input current is determined by the value of the two RCS The charging voltage is determined by the chip and cannot be modified by resistance
